Storge warehouse coldroom rfid cold rooms cold room vcr10

1000 Square Meters
MOQ
$32.26(1000 - 1999 Square Meters) $30.00(>=2000 Square Meters)
가격
Storge warehouse coldroom rfid cold rooms cold room vcr10
풍모 갤러리 제품 설명 따옴표를 요구하십시오
풍모
제품 사양
Applicable Industries: Hotels, Garment Shops, Building Material Shops, Machinery Repair Shops, Manufacturing Plant, Food & Beverage Factory, Farms, Restaurant, Home Use, Retail, Food Shop, Printing Shops, Construction works , Energy & Mining, Food & Bevera
Condition: New
Temperature: -18℃ ~ 10℃
Voltage: 380v
Power: 3.1kw
Dimension(L*W*H): 3000*2000*2300mm
Weight: 1274 KG
Warranty: 2 years
Key Selling Points: Low Maintenance Cost
Compressor brand: Other
Panel Thickness: 100mm
Cooling Capacity: 25ton
Machinery Test Report: Provided
Video outgoing-inspection: Provided
Warranty of core components: 2 YEARS
Core Components: Pressure vessel
interior size: 5960*2200*2200
Integrated cold storage machine: DA-300LY-FB
power supply: 380V/50HZ
refrigerating capacity: 6800W
Exhaust side pressure: 2.4Mpa
level of protection: IP*4
Refrigerant and injection capacity: r404≤3kg
size of cold storage door: 800*1800mm
Application: Cold Storge Warehouse
Product Type: storage room
After Warranty Service: Video technical support
Local Service Location: None
Showroom Location: None
After-sales Service Provided: Online support
인증: CE
Marketing Type: New Product 2021
기본 정보
인증: CE
결제 및 배송 조건
Packaging Details: Low Price High Quality Mini Frozen Cold Room/Cold Storage For Meat And Fish.cold room manufacturers packing: metal package and without packing
Supply Ability: 1000 Set/Sets per Month
제품 설명

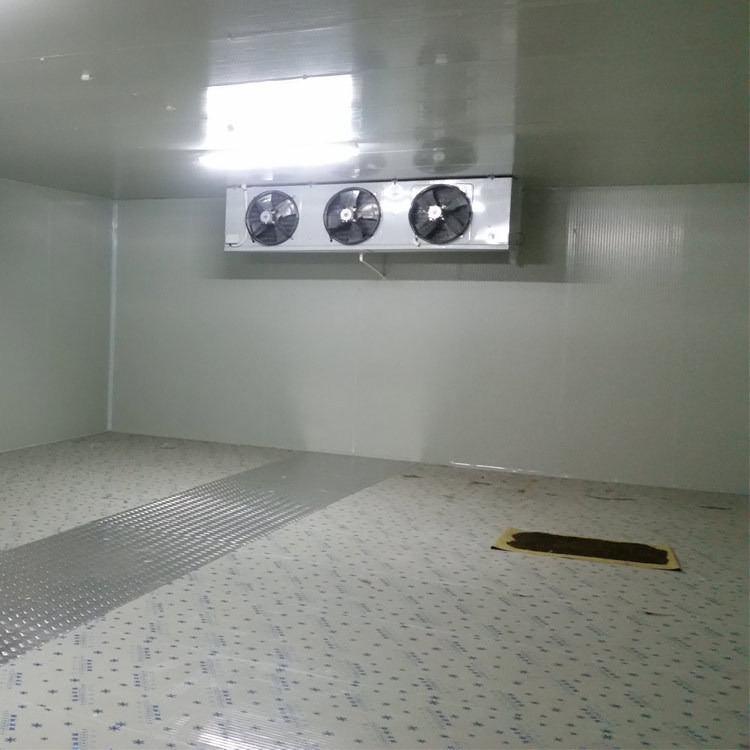

Product Display
Specification

APPLICATION

Cold storage is widely used in food, dairy, pharmaceutical and chemical plants;Fruit, vegetable and poultry egg warehouse;
Hotels, restaurants, supermarkets, hospitals, blood stations, military laboratories. Other cold storage is mainly used for the constant temperature storage of food, dairy products, meat, aquatic products, poultry,fruits and vegetables, cold drinks, flowers, green plants, tea, drugs, chemical raw materials, electronic instruments and instruments.

COLD ROOM PARTS

Cold room panels

The panels are polyurethane sandwich panels . It has more insulation performance than any other building materials .

COLD ROOM PARTS

Compressor

Screw refrigeration compressor is divided into twin screw compressor and single screw compressor

COLD ROOM PARTS

Air cooler

COLD ROOM PARTS

Evaporation discharge tube
COLD ROOM PARTS
Refrigerant

Classification of refrigerants
1.Classified by chemical composition
(1) Inorganic compound refrigerant
(2) Freon refrigerant (R22, R507)
(3) azeotropic solution refrigerant
(4) New refrigerant R134A, R152A.


COLD ROOM PARTS
Refrigerant

According to the standard evaporation temperature and condensing pressure at room temperature,
1) high temperature and low pressure refrigerant T>
2) medium temperature and medium pressure refrigerant T=-70~0 P<19.6 Piston compressor 3) low temperature and high pressure
refrigerant T<Refrigeration system
Our Technical  Parameter
1
Exterior dimension(L*W*H)
6160*2400*2500mm
2
Interior dimension(L*W*H)
5960*2200*2200mm
3
compressor
DA-300LY-FB
4
POWER
380V/50HZ
5
input
3.1kw
6
Refrigerator capacity
6800W
7
Pis. Pa
2.4 Mpa
8
Protection Grade
IP*4
9
Refrigerant Incharge
R404≦3 kg
10
Net weight
1274 Kg
11
Door
800*1800mm
12
Brand
Dongan
13
Mobile
8613845186928
Company Information
Harbin Dongan Building Sheets Co., Ltd established in the old plant area on March 1, 2017, with business mainly including steel structure maintenance system, production and processing of new and energy saving building materials, color plates, sandwich panels, color steel profiled board, houses in form of containers, K-type mobile houses and villa houses maintenance materials, as well as integrated house products.
Quality Products Make Engineering Better. Dongan has successfully provided services to Budweiser Beer, Sinoma, BMW China, Sinotruk, China Guodian, China CNR, China Mobile, and other well-known partners and national key projects. Each delivery is elaborate. Dongan will adhere to the system integration ability of project contracting, and win customers with quality through standardization of transparent and stable and focused management, and strive to become one of the most outstanding steel structure system service providers in China, and commit to becoming a steel structure company with employees, customers, partners, and social respect.
I. Scope of business As a leader in steel structure and color steel industry in China, Dongan Group has always been committed to research on energy conservation, environmental protection, ecological construction, to promote green energy-saving building materials and new steel structures as our responsibility, and has now formed an industry chain closely connected with production and marketing of core products such as steel structure and enclosure plates, engineering design, construction and installation of steel structure, international trade, environmental protection, energy-saving and heat insulation materials.
Dongan new energy-saving rock wool/glass fiber cotton composite board is a composite board with high quality from interaction between non-combustible structure rock wool/glass wool as core material, galvanized or aluminized zinc colored coated steel plate as the finish, and professionally developed adhesive agent, with functions of fire prevention, thermal insulation, noise reduction and aesthetic decoration in one.
Major system products: provider of all industrial plant materials system, mobile houses, villa houses and container houses. Major product series: 30 varieties, including steel structure series, new rock wool/glass fiber cotton composite board, polyurethane board series, composite floor board series, color steel profiled board series, color steel sandwich panel series, C/Z steel series, insulation door series, mobile house series, color coated steel plate series, and rock wool glass wool products. II. Engineering capability
Dongan has offices throughout China, with its wisdom blending into various industries and Dongan is known for its "high quality, excellent services and customer satisfaction". With expansion of market size and increasingly improvement of product structure, Dongan's brand effect has been improved significantly, with projects distributed widely in more than 20 provinces, cities and autonomous regions in China.
With an aim of "producing high-quality products and building excellent projects", Dongan serves its customers through integration of program selection, engineering design, processing and manufacturing, product transportation, project management, construction and installation, and technical consultation, ensuring a perfect engineering system.
Dongan Overseas: In order to actively expand overseas market and respond to the national Belt and Road strategies, Dongan has won customers in various countries such as Russia, Outer Mongolia, Australia, Indonesia, Thailand, Nigeria, Benin, Sudan, Angola, and Zambia. Depending on its design, manufacturing and installation capacity, Dongan has delivered quality projects and completed services for hundreds of customers at home and abroad. Up to now, it has completed more than 100 steel structure projects in fields of energy, aviation, aerospace, automotive, metallurgy, electric power, logistics, food, and stadiums, all of which have been highly appraised by industry customers, no matter from project quality, construction speed and after-sales services. The refinement of each project is a full expression of Dongan Group's brand strength.
III. Overseas business: Based on its own advantages and strengths in terms of geographical location, and the marketing strategy of "Explore International Market as well as Domestic Market", Dongan Group has been striving to expand its international market, follow international norms, obtain self-support import and export rights, and conduct external construction, design, consulting and project management. It has obtained USA FM certification, Russia GOST certification and established good international business channel relations with the Ministry of Commerce, the United Nations International Trade Department, the Russian Far East, with Southeast Asian countries such as Sri Lanka, Indonesia, Thailand and Maldives, with African countries such as Sudan, Angola, Benin, Niger, Zambia, Nigeria, Congo, Ghana, Guinea, Senegal, Kenya, Tanzania, Burkina Faso, and Uganda, with West Asia Countries such as Pakistan, Afghanistan and Kazakhstan, and established good cooperation with Russia and Mongolia. Its products have been widely exported to these countries. Major overseas projects undertaken in recent years include: Russian Market, Russia Birobidzhan Iron Mine, Vladivostok Shopping Mall, Bush grain store, Bush logistics warehouse, Russia Cement Plant, Russian Chemical Plant Rotary Furnace Project, Zhengbang Far East Pulp Mill, Mongolia Suzuki 4S Shop, Mongolia GOBI Woollen Sweater Factory, Heidelberg Cement Plant in Indonesia, Nigeria Cement Plant, Zambia Economic Park Steel Structure Plant and Maldives Membrane Structure. IV. Future of Dongan Dongan Group has formulated a long-term strategic plan, always adhering to corporate culture concept of "corporate quality, innovation and enterprising", brand concept of "creating the most valuable steel structure maintenance system", people-oriented, and insisting that creating social values as own responsibility, based on domestic market and expanding to international market, to make unremitting efforts to promote China's green energy-saving steel structure building system.

Certifications
Finished Products show
Package
Recommend Products
FAQ

Q: How is your Payment Term? A:One is 30% deposit by TT beforeproduction and 70% balance against copy of B/L; the other is Irrevocable L/C 100% at sight. Q:  Can we visit your factory? A: Warmly welcome. Once we have your  schedule, we will arrange the professional sales team to follow up your case.
